When you picture a house under construction, you likely envision the foundation, walls, and roof. But what ties it all together at the base? What is a plinth beam in construction? In simple terms, it is a continuous reinforced concrete band that acts as the critical backbone of your entire structure, built at ground level to connect all the columns and foundation walls. While often hidden from view, this unsung hero works silently to distribute weight, prevent cracks, and block moisture, ensuring your home’s strength and longevity for decades to come.
If you’re planning to build a house or are simply curious about what keeps buildings standing strong, understanding the plinth beam is crucial. This guide will break down everything you need to know in clear, easy-to-understand language.
At Rightcon Constructions, we deliver high-quality, affordable homes designed to fit your vision. Whether you’re building from scratch or expanding your space, we bring your ideas to life with experts, timely delivery, and a commitment to excellence. Our experienced team ensures a smooth, hassle-free construction process tailored to your budget and style. Get a Free Cost Estimation. Contact Us: 96065 92959 Visit Now: https://rightcon.in/
What is a Plinth Beam?

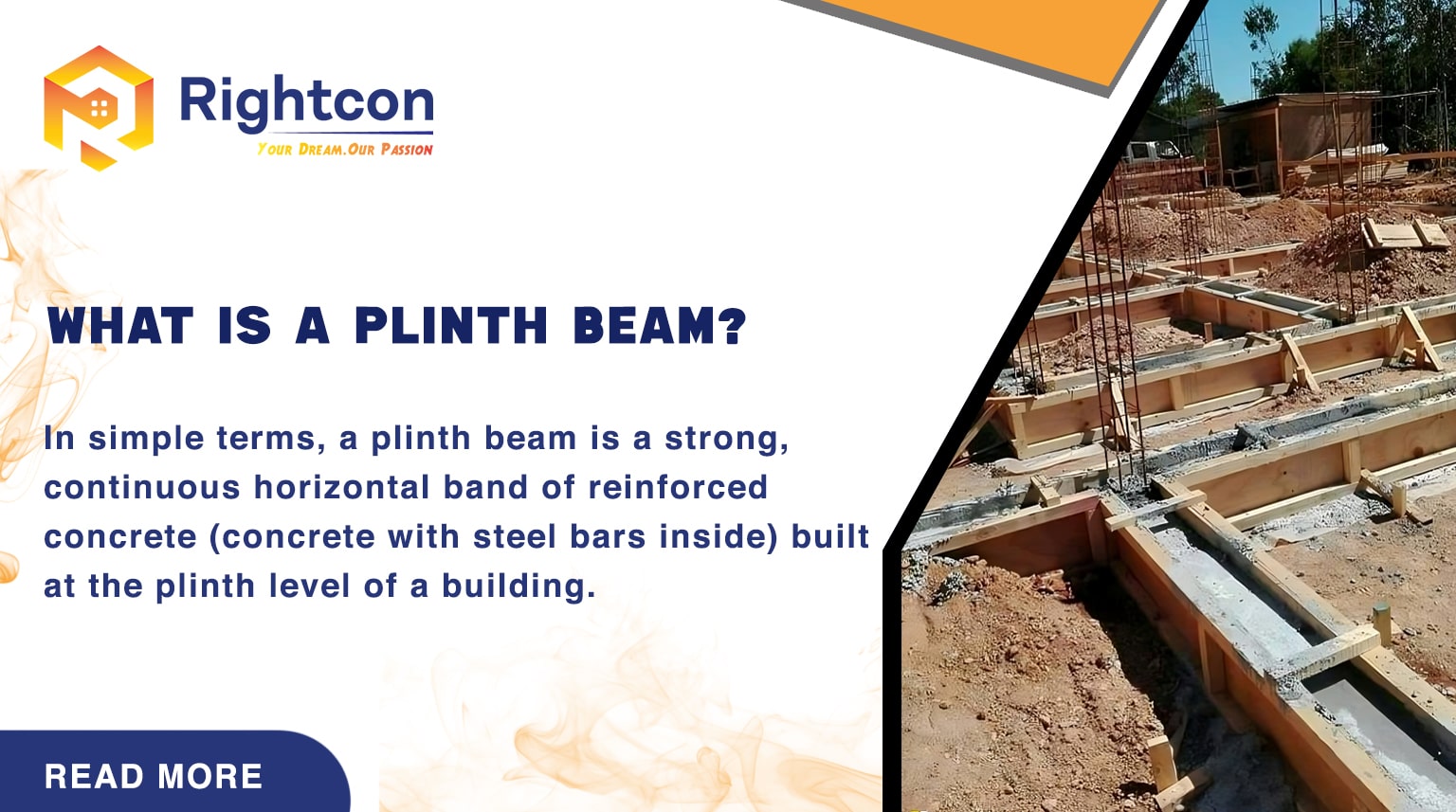

In simple terms, a plinth beam is a strong, continuous horizontal band of reinforced concrete (concrete with steel bars inside) built at the plinth level of a building. The plinth level is the part of the structure just above the ground and below the main walls.
Think of it as your house’s sturdy belt or waistband:
It ties all the columns and walls together at the base.
It evenly distributes the load from the walls down to the foundation.
It acts as a barrier against moisture and pests.
Unlike the decorative skirting inside your home, the plinth beam is a critical structural component hidden within the walls, working silently to ensure your home’s longevity and safety.
Why is a Plinth Beam Needed? (Importance & Benefits)
A plinth beam is not an optional extra; it’s a fundamental requirement for modern, safe construction. Its key benefits are:
Prevents Cracks from Differential Settlement: This is its most vital job. Soil under a building isn’t always uniform. If one part of the foundation settles more than another, it causes diagonal cracks in the walls. The plinth beam ties the entire structure together, forcing it to settle evenly as a single unit, thereby minimizing cracks. What is a plinth beam in construction?
Provides Damp-Proofing: Ground moisture can rise up into walls through bricks and mortar via capillary action, a phenomenon known as “rising damp.” The dense, impermeable concrete of the plinth beam acts as a physical barrier, blocking this upward movement and protecting your walls from peeling paint, mold, and structural damage.
Offers Earthquake Resistance: During an earthquake, lateral (sideways) forces shake the building. The plinth beam, as part of the building’s frame, adds rigidity and helps the structure resist these forces, preventing columns from collapsing independently.
Supports Masonry Walls: In framed structures (where columns carry the main load), the plinth beam provides a stable and perfectly level base on which to build the non-load-bearing brick or block walls.
Protects Against Pests: The continuous solid barrier makes it significantly harder for termites and other pests to travel from the soil into your walls and wooden furniture.
Where and How a Plinth Beam is Placed
Location: The plinth beam is always constructed at the plinth level. This is the level after the foundation (footings) is complete and before the construction of the main above-ground walls begins. It connects all the columns and foundation walls at the base.
Placement: It is a continuous beam that runs along the entire periphery of the building and also connects internal columns, forming a closed loop.
Technical Requirements & Specifications
There is no universal “standard” size, as it depends on the building’s design and load. However, typical specifications for residential buildings are:
Size: A common dimension is 9 inches (225mm) wide and 12 to 18 inches (300mm to 450mm) deep. The size is determined by a structural engineer.
Concrete Grade: Minimum M20 grade concrete is generally used, meaning it can withstand a compressive strength of 20 Newtons per square mm.
Reinforcement: It contains a minimum of 4 steel bars (2 at the top, 2 at the bottom), typically 12mm in diameter. These are held together by smaller steel stirrups (usually 8mm) spaced 6-8 inches apart.
Clear Cover: A minimum concrete cover of 40mm must be maintained around the steel bars to protect them from corrosion and fire.
#Materials Used
The materials are simple but must be of high quality:
Concrete: A mix of cement, sand (fine aggregate), and coarse aggregate (stone chips) in a specified ratio (e.g., 1:1.5:3 for M20 grade).
Steel Reinforcement (Rebar): High-strength thermo-mechanically treated (TMT) bars are used for their superior ductility and strength.
Formwork: Wooden planks or steel sheets used as a mold to hold the wet concrete in shape until it sets.
Cover Blocks: Small concrete or plastic blocks used to ensure the steel reinforcement has the proper concrete cover.
Step-by-Step Construction Process
Design & Planning: A structural engineer designs the beam’s size, concrete grade, and steel reinforcement.
Preparation & Formwork: After the foundation is ready, a sturdy mold (formwork) is erected along the plinth level, ensuring it is level and aligned.
Fixing Reinforcement: The steel bar cage, comprising main bars and stirrups, is assembled and placed inside the formwork. Cover blocks are used to prevent the steel from touching the formwork. What is a plinth beam in construction?
Pouring Concrete: Concrete of the designated grade is poured into the formwork in a continuous process. A vibrator is used to compact the concrete and remove air pockets.
Curing: This is a critical step. The beam must be kept wet for at least 7-14 days by sprinkling water and covering it with gunny bags. This allows the concrete to achieve its full strength.
Removal of Formwork: The formwork is carefully removed after 3-7 days, once the concrete has gained sufficient strength.
Common Mistakes & How to Avoid Them
Constructing a plinth beam requires precision. Here are common errors and how to prevent them:
Mistake: Inadequate Curing
Consequence: This leads to weak, porous, and cracked concrete that cannot carry the intended loads, defeating the beam’s purpose.
Avoidance: Mandatorily cure the beam for 7 to 14 days by keeping it continuously wet with water sprinkling and covered with gunny bags. Treat this step as non-negotiable.
Mistake: Incorrect Steel Placement
Consequence: Using fewer or thinner bars, or placing them incorrectly, drastically reduces the beam’s strength and can lead to structural failure.
Avoidance: Follow the structural engineer’s drawing exactly. Use a qualified supervisor to ensure the steel cage is assembled and positioned correctly before concreting.
Mistake: Poor Concrete Quality
Consequence: A weak concrete mix results in a brittle beam that cannot handle structural loads and is prone to crumbling.
Avoidance: Use the specified concrete grade (e.g., M20) with a precise mix ratio and ensure all materials (cement, sand, aggregate) are clean and of high quality.
Mistake: Insufficient Concrete Cover
Consequence: If the steel bars are too close to the surface, they corrode over time. Rusting steel expands, causing the concrete to crack and spall from the inside out.
Avoidance: Use proper cover blocks (typically 40mm) to maintain a consistent gap between the steel and the formwork, ensuring the steel is fully embedded in concrete.
Mistake: Discontinuous Pouring
Consequence: Pouring concrete in separate stages creates weak “cold joints” in the beam, compromising its integrity as a single, continuous unit.
Avoidance: Plan the concrete pour to ensure the entire beam is cast in a single, continuous operation from start to finish.
Plinth Beam VS Tie Beam VS Foundation Beam
It’s easy to confuse these horizontal beams. Here is a clear, point-wise distinction:
Plinth Beam
Location: It is constructed at the Plinth Level, which is just above the surrounding ground level.
Function: Its main roles are to distribute the load from the walls to the foundation, act as a damp-proof course, and tie all the columns together at the base of the structure.
Analogy: Think of it as the strong Waistband of your building, holding everything together at the bottom.
Tie Beam
Location: It is constructed above the Plinth Level, for example, between columns at a higher floor level or at the lintel level.
Function: Its primary purpose is purely to tie or connect columns and walls together, providing lateral stability and preventing them from buckling. It does not carry any wall load from above.
Analogy: Think of it as a Suspender Strap used higher up on the structure for added stability.
Ground Beam
Location: It is constructed at the Foundation Level, often below ground level, connecting individual footings or pile caps.
Function: Its main job is to distribute heavy loads from columns over a wider area of weak or unstable soil, essentially acting as a bridging element within the foundation itself.
Analogy: Think of it as the Sleigh Base or a raft that spreads the weight over a soft surface like snow.
Frequently Asked Questions (FAQ)
1. Is a plinth beam necessary for a single-story house?
Yes, absolutely. Even a single-story house is susceptible to differential settlement and rising damp. The plinth beam is a cost-effective investment for long-term structural health.
2. What happens if a plinth beam is not provided?
The risks are severe: major diagonal cracks in walls due to settlement, chronic rising damp problems, reduced earthquake resistance, and costly future repairs.
Read Our Related Articles
Hollow Blocks for Construction in India
Overhead Tank (OHT) Capacity Calculation: A Complete Guide
Eco-Friendly House Construction in Bangalore & Mysuru
How to Calculate Reinforcement in Slab 2025
Affordable Home Builders in Bangalore & Mysore
Construction Process of Residential Building 2025 in India
Which Brick is Best for House Construction?
Best Construction Company In Bangalore & Mysore
Site Preparation: Why Is It Important for Construction?
Conclusion
The plinth beam may never be seen once your home is complete, but its role is indispensable. It is the critical link between the foundation and the superstructure, ensuring that the weight of your home is managed, its base is protected from moisture, and its overall integrity is maintained against natural forces. What is a plinth beam in construction?
When building your dream home, never compromise on the design, materials, or construction quality of the plinth beam. This unseen “waistband” is what will keep your home standing tall, straight, and healthy for a lifetime.
